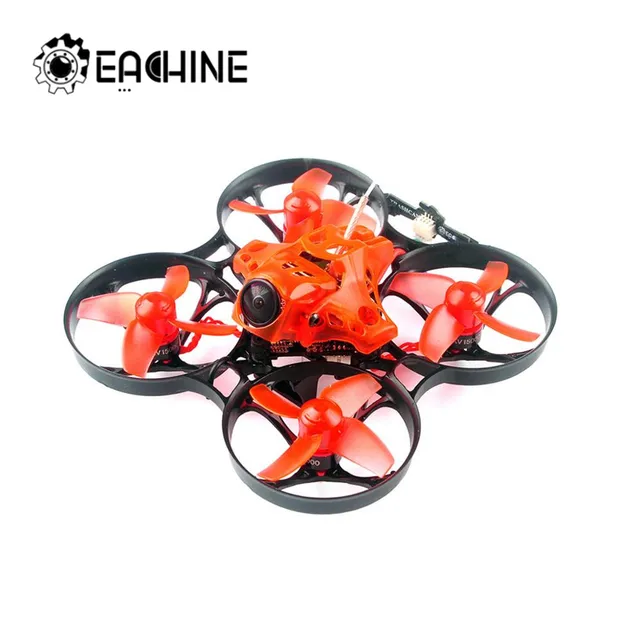

Eachine TRASHCAN TC75 75mm Crazybee F4 PRO OSD 2S Whoop FPV Racing Drone Caddx Eos2 Camera 25/200mW
July 05, 2019
Edit
US $99
Original Price : US $198 (50%)
Discount Offer Eachine TRASHCAN TC75 75mm Crazybee F4 PRO OSD 2S Whoop FPV Racing Drone Caddx Eos2 Camera 25/200mW with Free Worldwide Shipping!
4.74
Related Products :
Eachine Cinecan 85mm 4K Cinewhoop 3-4S FPV Racing Drone BNF/PNP Crazybee F4 PRO V3.0 Caddx Tarsier Cam DVR
Eachine US65 UK65 65mm Whoop FPV Racing Drone BNF Crazybee F3 Flight Controller OSD 6A Blheli_S ESC
URUAV UR65 65mm FPV Racing Drone BNF Crazybee F3 Flight Controller OSD 5A Blheli_S ESC 5.8G 25mW VTX RC Quadcopter
Product description
[32954668042]Please notice that the orders from Overseas warehouse are not coming with gifts!
Eachine TRASHCAN TC75 75mm Crazybee F4 PRO OSD 2S Whoop FPV Racing Drone Caddx Eos2 Camera 25/200mW VTX
Specifications:
Brand Name: Eachine
ModelName:TRASHCAN
Item Name: 2S75mmBrushless Whoop racer drone BNF/PNP
Wheelbase: 75mm
Size: 98mm*98mm*36mm
Weight: 33g(without battery)
Weight:48g(with Original 1s 300mah lipo battery x2)
Spare parts specifications:
Motor
Mode: TC0803 15000KV
Configu-ration: 9N12P
Stator Diamter: 8mm
Stator Length: 3mm
Shaft Diameter: Φ1mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.5mm
Weight(g): 2.2g
No.of Cells(Lipo): 1S-2S
Flight controller
(Frsky version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4FR
(Flysky version) CRAZYBEEF4 PRO FS Firmware target: CrazybeeF4FS
(DSM2/DSMX version) CRAZYBEEF4 PRO Firmware target: CrazybeeF4DX
(No RX version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4DX
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2Sbattery input (DC 3.5-8.7V)
Built-in 6A(each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky version Built-inSPIFlysky receiver with telemetry(AFHDS/AFHDS2Aswitchable)
DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver
No RX version need to add external Receiver
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boostwith LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Taillight LED Ready
Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)
Current: 6A continuous peak 7A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600
FrskyNON-EUreceiver Version
SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitterboth D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Flysky receiver Version
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
DSM2/DSMX receiver version
Serial bus receiver
Protocol: DSM2/DSMX compatible
Channels:6-9 (Depend on your radio)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
PNP No RX version
No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.
VTX
Output power: 25~200mwswitchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40channels
With Raceband
Smart Audio ready
Weight: 3g
CADDX EOS2 camera
1/3"CMOSSensor
1200 TVL
2.1mmlens
16:9 Image size
NTSC
Global WDR
InternalSynchronization
Lipo Battery
Capacity: 300mAh
Voltage: 3.8v
Continuous Discharge Rate: 40C
Instantaneous discharge rate: 80C
Size: 55mmx11.5mmx6.5mm
Weight: 7.8g
Connector: PH2.0
*Notes: Need 2pcs batteries for Series circuit
Features:
PNP version support TBS receiver
NewCrazybee F4 PROFlight controller 1-2s Lipo Compatible
2Swhoop more powerful and more flight time
Betaflight support , multi flight mode: ACRO/AIR/ANGLE
New0803Powerful and High efficiency Brushless motor and Smooth ESC. The motor power with 7V and 40mm propeller can get55g pull. It is more powerful pull than 0802 49g.
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSMX version no RSSI output)
Caddx EOS2 camera ready , More comfortable FPV experience
Camera Angle adjustable (0-35°)
VTX power switchable 25mw~200mw
Smart Audio ready, change VTX bands, powers, channels via OSD
Adjust the settings and the PID of the flight controller via OSD
Frsky Non-EU version supportNON-EU Frsky transmitterD8/D16 compatible
Flysky version support both AFHDS and AFHDS-2A protocol transmitter
DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc..
Full telemetry function ready(Frsky Non-EU and Flysky version support)
Support buzzer
LED_Strip Ready
Real Bind and Fly version
Compatible both for 1s-2s
User Manual
Crazy PNP Manual,Download
DSM2 DSMX version Manual,Download
Flysky version Manual,Download
Frsky version Manual,Download
Package Included:
PNP/ NO Receiver Version
1 x 75mm Brushless whoop Frame
1 x Crazybee F4 PRO FCno RX verion
4 x TC0803KV15000 Motor
1 x 40mm propeller(4cw+4ccw)
1 x Caddx EOS2 camera
1 x 5.8G 40ch 25mw~200mw VTX
4 x 3.8v 300mah 40C/80C battery
1 x USB Lipo/LIHV Charger
1 x Propeller disassemble tool
1 x LED board
1 x Screwdriver
1 x XT30 wire
1 x Bag
BNF Version
1 x 75mm Brushless whoop Frame
1 xOption1:Crazybee F4 PRO FCbuilt-in Frsky NON-EU receiver
Option2: Crazybee F4 PRO FCbuilt-in Flysky AFHDS and AFHDS-2A Switchable receiver
Option3:Crazybee F4 PRO FCbuilt-inDSM2/DSMX receiver
4 x TC0803KV15000 Motor
1 x 40mm propeller(4cw+4ccw)
1 x Caddx EOS2 camera
1 x 5.8G 40ch 25mw~200mw VTX
4 x 3.8v 300mah 40C/80C battery
1 x USB Lipo/LIHV Charger
1 x Propeller disassemble tool
1 x LED board
1 x Screwdriver
1 x XT30 wire
1 x Bag
