Product description
[33050770314]CUAV New Pixhack V5 nano Small Flight Controller For Ardupilot PX4 Drone Parts free shipping whole sale
V5 nano is an autopilot for space-constraint applications designed by CUAV in collaboration with the PX4 team.It is based on the Pixhawk FMUv5 design standard and is optimized to run PX4 firmware, and is also compatible with ArduPilot firmware.
Features:

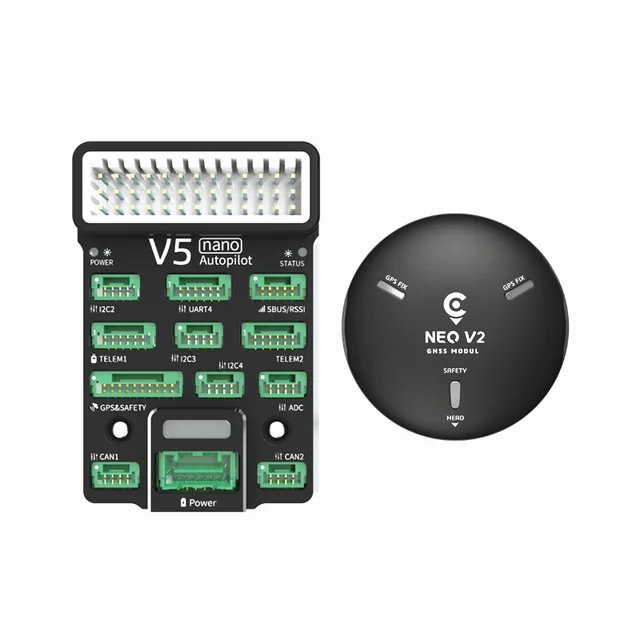

- Compact but powerful V5 nano flight controller + NEO GPS
- Support for hardware on open source platform PX4 and Autopilot
- Suitable for fixed-wing drones, helicopters, multicopters, FPVs, VTOL, Unmanned Boats, UAVs
- High Performance: Equipped with STM32F765 microprocessor, features 216MHz main frequency, 2M flash and 512K SDRAM. There are four groups of isolation chips and a MS5611 high-precision air gauge.
- Easy to install and dismantle with 2.6mm spacing between IO pins.
- Real-time Data Monitor: Five groups of built-in sensors enhance its safety and stable performance. There are ICM-20689 accelerometer and gyroscope, ICM-20602 accelerometer and gyroscope, BMI055 accelerometer and gyroscope, IST8310 magnetic compass and MS5611 air gauge.
Specifications:
Hardware Parameters:
- Main FMU Processor: STM32F765(32-bit, 216MHz, 2MB flash, 512KB RAM)
Sensors:
- Accelerometer: ICM-20602/ICM-20689/BMI055
- Gyroscope: ICM-20602/ICM-20689/BMI055
- Magnetometer: IST8310
- Air Gauge: MS5611
Interfaces:
- UART Ports: 5
- I2C Ports: 4
- PWM Output: Up to 11
- PWM Input: 4
- Signal Input Protocol for Remote Control: PPM/SBUS/DSM
- RC IN: 1
- PPM IN:1
- RSSI Input: PWM or 3.3V analog voltage
- CAN Standard Bus: 2
- Current & Voltage Input: 1
- Safety Switch: 1
- GPS Port: 1
- Debug Port: 1
- JATG Port: 1
- USB Port: 1 (Type-C)
Supported Models:
- For PX4 Hardware: Fixed-wing Aircrafts, 3-8 Multicopters, Helicopters, VTOL, UAVs, Unmanned Boats
Working Conditions & Physical Parameters:
- PM Working Voltage: 4.5 to 5.5V
- USB Voltage: 5V±0.25V
- Servo Input: 0 to 36V
- Working Temperature: -40 to 85℃
Weight & Dimensions:
- Dimensions: 40 x 60 x 17.5mm
- Weight: 40g
Package1 Included: with NEO GPS
- 1 x V5 nano Flight Controller
- 2 x Dupont Cables
- 1 x ADC6.6 Cable
- 2 x I2C/CAN Cables
- 1 x SBUS Signal Cable
- 1 x RSSI Cable
- 1 x DSM Signal Cable
- 1 x ADC3.3 Cable
- 1 x Debug Cable
- 1 x Safety Switch + Cable
- 1 x Voltage Current Cable
- 1 x PW-Link Module + Cable
- 1 x Power Suppl Module
- 1 x 16GB Memory Card
- 1 x I2C Expansion Board
- 1 x TTL Board
- 1 x NEO GPS
- 1 x GPS Bracket
Package2 Included: without NEO GPS
- 1 x V5 nano Flight Controller
- 2 x Dupont Cables
- 1 x ADC6.6 Cable
- 2 x I2C/CAN Cables
- 1 x SBUS Signal Cable
- 1 x RSSI Cable
- 1 x DSM Signal Cable
- 1 x ADC3.3 Cable
- 1 x Debug Cable
- 1 x Safety Switch + Cable
- 1 x Voltage Current Cable
- 1 x PW-Link Module + Cable
- 1 x Power Suppl Module
- 1 x 16GB Memory Card
- 1 x I2C Expansion Board
- 1 x TTL Board
