happyymodel Mobula7 Mobula 7 75mm Crazybee F3 Pro OSD 2S Racing Drone Compatible Frsky Flysky
August 06, 2019
Edit
US $87.47
Original Price : US $174.94 (50%)
Best Offer happyymodel Mobula7 Mobula 7 75mm Crazybee F3 Pro OSD 2S Racing Drone Compatible Frsky Flysky with Free Shipping Worldwide!
4.58
Related Products :
Happymodel Mantis85 Mantis 85 85mm FPV Racing Drone w/ Supers_F4 6A BLHELI_S 5.8G 25MW 48CH 600TVL RTF
Snapper7 Snapper 7 Brushless 4-Axis Aircraft Micro 75mm FPV Drone 700TVL Camera
Happymodel Mobula7 HD 2-3S 75mm Crazybee F4 Pro BWhoop Mobula 7 FPV Racing Drone PNP BNF w/ CADDX Turtle V2 HD Camera Presale
FrSky ACCST Taranis Q X7 QX7 2.4GHz 16CH Transmitter For RC Multicopter FRSKY X7
Product description
[32940801954]Another recommend indoor FPV drones please click here
extra battery for Mobula7 please click here ,don't put extra in one orderextra battery for Mobula7 please click here ,don't put extra in one order
Note:Version: Basic Version / Standard Version ( Optional)
- The diffirence of them are the package charger.
Basic Version: USB Charger
Standard Version: 6-way Charger
Specification:
Model: Mobula7
Item Name: 75mm Wheelbase2S Brushless Whoop FPV Racing Drone
Receiver ( Optional): Compatible Frsky NON-EU Receiver
Compatible Frsky EU-LBT Receiver ( XM+ Receiver)
Compatible FlyskyAFHDS/AFHDS-2AReceiver
Compatible DSM2/DSMX Receiver
Crazybee F3 Pro Flight Controller
Item Name: Crazybee F3 Pro FC
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply:1-2Sbattery input (DC 3.5-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Receiver ( Diffirent version having diffirent receiver)
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A BEC with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Heading LED Ready
Firmware
(Frsky version) CRAZYBEEF3 PRO FR Firmware target: CrazybeeF3FR
(Flysky version) CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS
(DSM2/DSMX version) CRAZYBEEF3 PRO Firmware target: CrazybeeF3DX
(Frsky EU-LBT version) CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS
Onboard 5A 4 In 1 ESC
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)
MCU upgraded to EFM8BB21
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7
Default protocol: DSHOT600
Onboard FrskyNON-EUreceiver Version
SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitterboth D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Onboard Frsky EU-LBT Version
(External XM+ receiver)
Operating Voltage Range: 3.7~10V
Operating Current: 30mA @5V
Operating Range: Full range
With RSSI output on board: Analog 0~3.3V
Firmware Upgradeable, Default firmware EU-LBT with RSSI
Onboard Flysky receiver Version
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Onboard DSM2 / DSMX receiver version
Serial bus receiver
Protocol: DSM2/DSMX compatible
Channels:6-9 (Depend on your radio)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
SE0802 16000KV Motor
Model: SE0802
KV: 16000KV
Configu-ration: 9N12P
Stator Diamter: 8mm
Stator Length: 2mm
Shaft Diameter: Φ1.0
Motor Dimension (Dia.*Len) : Φ10.5*14.5mm
Weight: 1.8g
Support 1-2S Lipo
No.of Cells: 1S Lipo
Propeller
40mm 3-blade Propeller ( 4 CW + 4 CCW)
5.8G VTX AIO Camera
5.8G 40CH 25mW VTX
Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
700TVL FOV120 Camera
Camera resolution: 700TVL
Field of view: 120°
Video Format: NTSC
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready(Frsky EU-LBT and DSMX version not compatible)
Size: 13.9"12.0mm ( L*W )
Weight: 3g
Lipo Battery
Capacity:250mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 55mmx12mmx7mm
Weight: 6.5g
Connector: PH2.0
Notes: Need 2pcs batteries for Series circuit
Features:
- New Crazybee F3 PRO Flight controller 1-2s Lipo compatible
- 2S whoop more powerful and more flight time
- Betaflight support , multi flight mode: ACRO/AIR/ANGLE
- New 0802 Powerful and High efficiency Brushless motor and Smooth ESC
- Smartaudio ready , change VTX bands, channels via OSD
DSM2/DSMXandFrskyEU-LBTversionareSerial-basedreceiver, so Smartaudio is not compatible.
- Adjust the settings and the PID of the flight controller via OSD
- Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible
- Flysky version support both AFHDS and AFHDS-2A protocol transmitter
- DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
- Frsky EU-LBT version support Frsky EU-LBT firmware transmitter
- Full telemetry function ready
- Head lights ready
- Camera angle adjustable
- Real Bind and Fly version
- Buzzer Ready

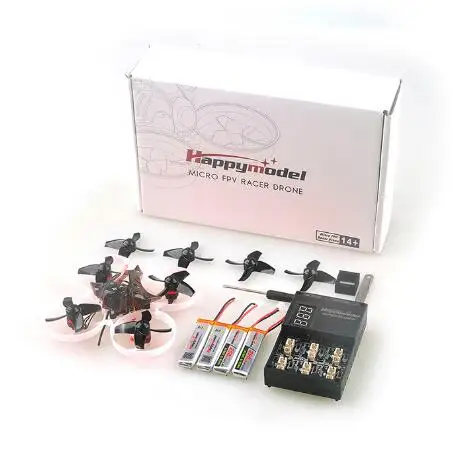

Package Included:
Basic Version
1x Mobula7 75mm FPV Drone
4x 40mm 3-Blade Propellers ( 4 CW & 4 CCW)
4x 3.8v 250mah 30C/60C Lipo battery
1xUSB Lipo/LIHV Charger
1x Fixing Mount for Lipo Battery
1xPropeller Disassemble Tool
1xScrewdriver
Standard Version
1x Mobula7 75mm FPV Drone
4x 40mm 3-Blade Propellers ( 4 CW & 4 CCW)
4x 3.8v 250mah 30C/60C Lipo battery
1x1S06 6 Way Lipo/LIHV charger
1xPropeller Disassemble Tool
1x Fixing Mount for Lipo Battery
1xScrewdriver
​
