Product description

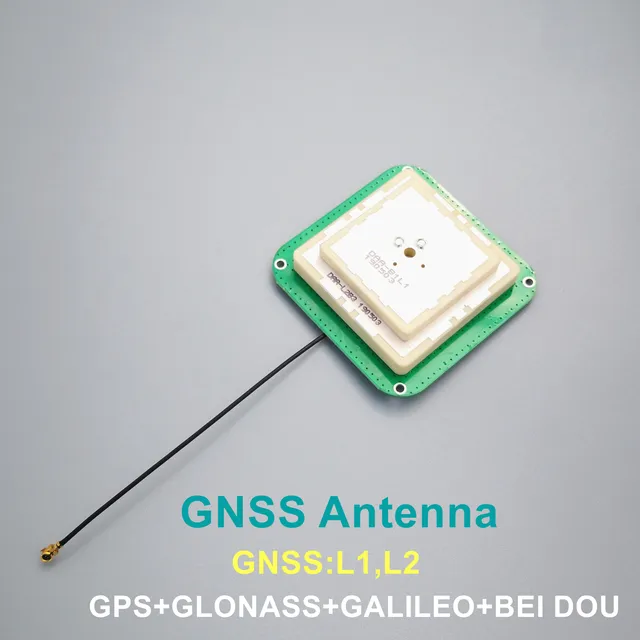

[33059075855]TOPGNSS AN506 Built-in GNSS antenna, used in ZED-F9P module with high-precision GNSS internal antenna, can be used with GNSS multi-mode multi-frequency board, can receive L1, L2 frequency at the same time. Designed with L1 and L2 double dielectric ceramic antennas. Small size, only 55*55*13.5MM
It is easy to integrate with other GNSS terminals while satisfying good GNSS reception performance.High-quality industrial-grade manufacturing, compatible with brand receivers,
The antenna can be used with a variety of satellite navigation receivers and is widely used in geodetic surveying, waterway mapping, precision agriculture and the sea.measurement and other fields can also be applied to the military field according to application conditions.
Product features：
1. Using multi feed point design to ensure the superposition of phase center and geometrical center which
could minimize the influence of measurement error to lowest range
2. High gain of the antenna element and the direction map beam width to make sure the receiving satellites
performance of low elevation mask
3. Resistance multipath effects board inside could reduce the measurement error caused by multipath
Name: High precision GNSS internal antenna
Working voltage: 3-12V
Connector: IPEX
Cable length: 15CM
Working mode: GNSS (L1, L2)
GNSS mode: GPS, GLONASS, GALILEO, BEi Dou
Size: 55*55*15.0mm
TOPGNSS.Store Promotional offers sold in 50PCS
GPS/Glonass/Beidou antenna,waterproof High-Precision survey CORS RTK antenna,CORS GNSS antenna,
This product is a complete set of sales containing:
GNSS antennaAN506:1PCS
Support GNSS system：
GPS:L1/L2
BEIDOU:B1/B2
GLONASS:L1/L2
​
Packing product list (each one): TOP148 1PCS
