GEPRC Mark4 Mark 225mm 260mm 295mm FPV Racing Drone Frame Freestyle X Quadcopter 5mm Arm GEP 5" 6"

September 29, 2019 Edit

US $45.99 Original Price : US $45.99 (0%)

Discount Price GEPRC Mark4 Mark 225mm 260mm 295mm FPV Racing Drone Frame Freestyle X Quadcopter 5mm Arm GEP 5" 6" with FREE Worldwide Shipping!


 4.72

Buy on AliExpress


Product description

[33033835885]

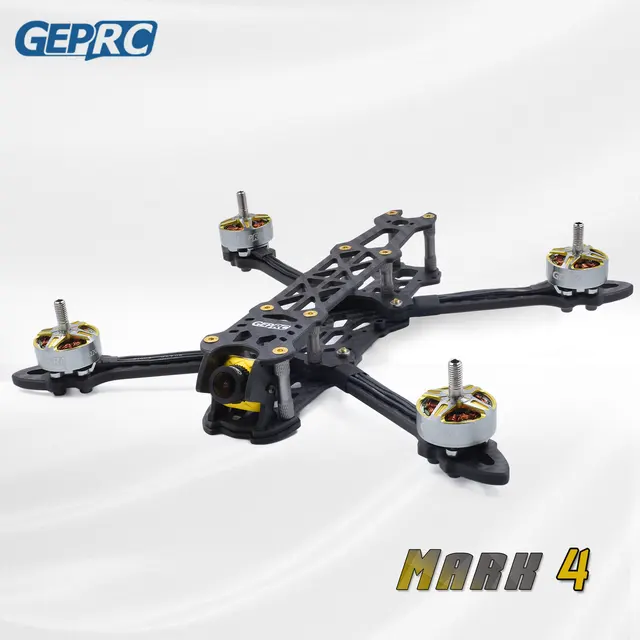

GEPRC Mark4 Mark 225mm 260mm 295mm FPV Racing Drone Frame Freestyle X Quadcopter 5mm Arm GEP 5" 6" 7" RC drone






















Introduction:












I want the fancy rack to perform more in flight, the lighter rack, the convenient electronics installation and balanced center of gravity, and the smooth flight shooting, these ideas create a new fancy rack Mark4.



















It is no longer a wide X design, but an H-shape, which does not affect the flight experience. The benefit is that the arm length is shortened, the weight is reduced, and the arm strength is increased. It also provides more installation space for the middle position of the low center machine compartment. Of course, you can also mount the arm to the bottom for more installation space.



















The mounting size of the FPV lens is adjusted to 19*19. There are 30.5*30.5 and 20*20 mounting holes in the middle section and the second half, and there are more directions in the selection of the flight control. In the middle section, 30.5*30.5 has been set up with soft-installed silica gel, which can reduce the pressure caused by vibration to the flight control to a greater extent, thus achieving smooth flight.



















The arm of the rack is chamfered with the upper and lower plates. The upper plate uses a countersunk screw to make the surface more flat. There are also front and rear bumpers that allow the player to provide protection while flying while reducing losses and facilitating replacement. Of course, there are also custom-made thick aluminum columns to ensure the strength of the rack!



















All the elements of this fancy rack, I believe it can bring you flying fun and smooth flight shooting!






















5inch parameters:






Name: GEP-Mark4-5






Weight: 102g






Wheelbase: 225mm






Blade size: 5inch






Size: 145*172mm






Arm thickness: 5mm






Body panel thickness: 2.5mm






Splint thickness: 2mm






Front and rear protection frame thickness: 2mm
























6inch parameters:









Name: GEP-Mark4-6









Weight: 111g









Wheelbase: 260mm









Blade size: 6inch









Size: 162*203mm









Arm thickness: 5mm









Body panel thickness: 2.5mm














Splint thickness: 2mm












Front and rear protection frame thickness: 2mm







































7inch parameters:









Name: GEP-Mark4-7









Weight: 121g









Wheelbase: 295mm









Blade size: 7inch









Size: 193*223mm









Arm thickness: 5mm









Body panel thickness: 2.5mm









Splint thickness: 2mm









Front and rear protection frame thickness: 2mm





























5-inch recommended configuration:



















Flight Control: RF/Kiss/F4/F3/F7









Motor: 2205/2206/2207/2207.5/2305/2306









ESC: 30A-50A









Battery: 4S 1500mAh ~ 6S 1150mAh







































6 inch recommended configuration:



















Flight Control: RF/Kiss/F4/F3/F7









Motor: 2207/2207.5/2305/2306/2407









ESC: 35A-60A









Battery: 4S 1500mAh ~ 6S 1300mAh







































7 inch recommended configuration:



















Flight Control: RF/Kiss/F4/F3/F7









Motor: 2207.5/2305/2306/2407/2408/2507









ESC: 40A-60A









Battery: 4S 1800mAh ~ 6S 2200mAh




















PackageIncludes::



GEPRC Mark4 quadcopter frame * 1 set



Camera ,motoris not included!
