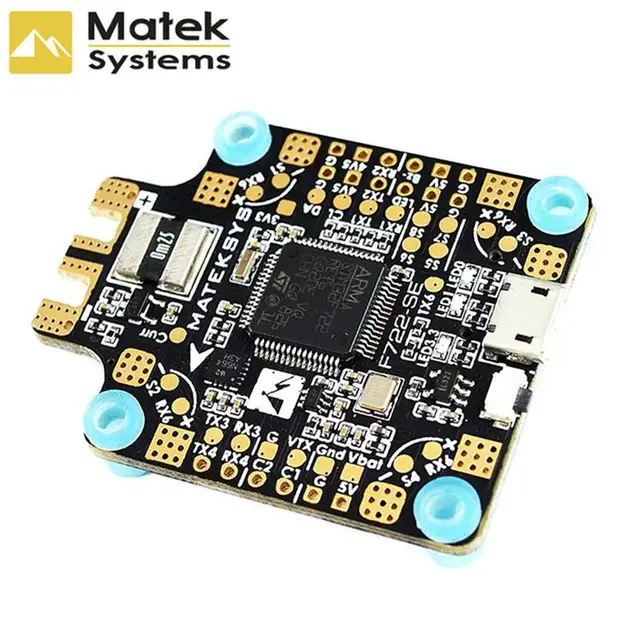

Matek System F722-SE F7 Dual Gryo Flight Controller AIO OSD BEC Current Sensor For RC Models Multic
September 16, 2019
Edit
US $39.99
Original Price : US $79.98 (50%)
Limited Price Matek System F722-SE F7 Dual Gryo Flight Controller AIO OSD BEC Current Sensor For RC Models Multic with Free Shipping Worldwide!
4.66
Related Products :
Original Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD 5V/2A BEC Current Sensor For RC Models
AKK X2-ultimate International 25mW/200mW/600mW/1200mW 5.8GHz 37CH FPV Transmitter with Smart Audio for RC Models Drone Part Accs
Matek Systems M8Q-5883 SAM-M8Q GPS & QMC5883L Compasses Module for RC Drone FPV Racing Models Part Accessories
Diatone MAMBA F405 Mini MK2/ F722/ F722S Betaflight Flight Controller & F40 40A / F25 50A Brushless ESC For RC Drone Parts
Product description
[32955160670]Specification: ( Manual )
Brand Name: Matek System
Model: F722-SE
Item Name: F7 Dual Gyro / ACC Flight Controller Board
MCU: STM32F722RET6 216MHz
IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)
Baro: BMP280 (I2C)
OSD: AT7456E (SPI)
Blackbox: MicroSD card slot (SPI)
Firemware: BetaFlight / INAV
Target: MATEKF722SE
Size: 36x46mm
Mounting Hole: 30.5x30.5mm
Weight: 10g
PDB Specifications
Input: 6~36V (3~8S LiPo) w/TVS protection
PDB: 4x35A (Max.4x46A)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
Current Sensor 184A (Scale 179)
Battery Voltage Sensor: 1:10 (Scale 110)
Features:
5x Uarts (1,2,3,4,6) with build-in inversion
1x Softserial supported
8x Dshot/Proshot/oneshot outputs
1x I2C
4x RX6 pad(one per cornet) for BLheli32 ESC telemetry
4x individual ESC power/signal pads
1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
3x LEDs for STATUS (Blue, Green) and 3.3V indicator(Red)
- Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1)
- Dual Camera image switchable via AUX (modes tab-user2)
Camera control: Yes
Smartaudio & Tramp VTX protocol: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Additional ADC for INAV analog airspeed
Package Included:
1x F722-SE F7 Flight Controller
1x FR4 PCB Plate 36*36*1mm
1x Rubycon ZLH 35V/470uF (Low ESR)
Return:
If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
