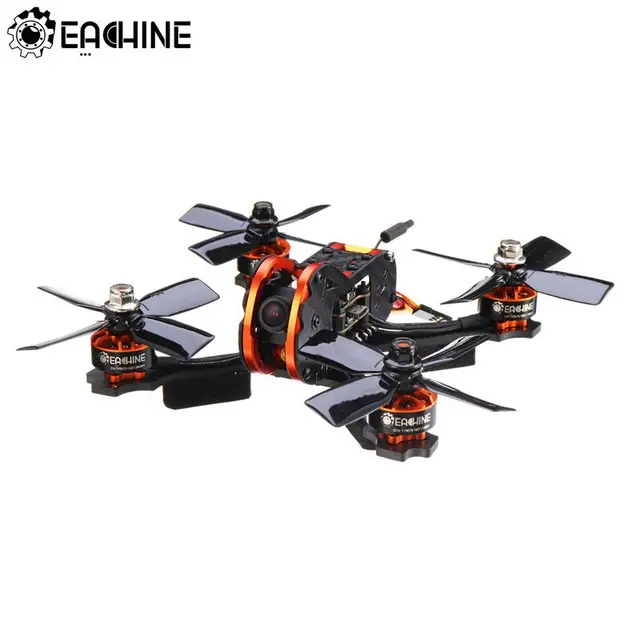

Eachine Tyro79 140mm 3 Inch DIY Version For FPV Racing Frame RC Drone Quadcopter F4 OSD 20A BLHeli_
October 24, 2019
Edit
US $78.2
Original Price : US $170 (54%)
Best Price Eachine Tyro79 140mm 3 Inch DIY Version For FPV Racing Frame RC Drone Quadcopter F4 OSD 20A BLHeli_ with Free Worldwide Shipping!
4.72
Related Products :
High Quality Eachine Wizard X220 FPV Racer Blheli_S Naze32 6DOF 5.8G 48CH 200MW 700TVL Camera w/ FlySky I6 RTF FPV Drone
Eachine Wizard X220S ARF RC Multicopter FPV With Omnibus F4 5.8G 72CH VTX 30A Dshot600 2206 2300KV 800TVL CCD For RC Racer Drone
Original Eachine Novice-I 75mm 1-2S Whoop FPV Racing Drone RTF & Fly more w/ WT8 2.4G Transmitter 5.8Ghz 48CH VR005 Goggles
Diatone 2019 GT R349 135mm 3 Inch 4S FPV Racing RC Drone Quadcopter PNP w/ F4 OSD 25A RunCam Micro Swift TX200U Boys Toys
Product description
[32963534613]Note: 1. This is the DIY version that comes unassembled. 2. Comes without battery, charger, receiver or remote control. Item Specification 140mm Racing Frame Kit Wheel base: 140mm Frame arm thickness: 3mm Upper plate thickness: 1mm Side plate thickness: 1mm Frame kit material: 3K carbon fiber & CNC 6065 aluminium 1607 2800KV 2-4S Brushless Motor KV: 2800KV Lipo cell: 2-4S Weight: 17.8g (includes wires) Output shaft length: 14mm Maximum pull: signal 630g (4S 3030 4-blade propeller) Maximum power: 350W Configu-ration: 9N/12P Mounting holes distance: 12*12mm Mounting holes: φM2 Bearing: NSK N52 Strong NdFeB Magnet Recommend propeller: 3 inch 4 IN 1 20A BLHeli_S ESC Continuous current: 20A Pe ak current: 25A (10S) BEC output: no Input voltage: 2-4S Main control chip: 48mhz EFM8BB2 Firmware upgrade: Supports Dshot600/BLHeli_S/Oneshot125 MOS: 3*3 MOS type: vs3610ae 30v64a Customized F4 Flight Controller Main control chip: STM32F411 Sensor: ICM20602 6-axis Integrated OSD PPM/DSM/IBUS/UAR share: UART1-RX Mounting holes distance: 20*20mm Weight: 24g PID circulation rate and refresh rate can up to 32kHz Supports Betaflight/cleanflight/inav firmware 700TVL CMOS Camera Case size: 19mm*19mm Weight: 9.5g Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP) Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP) Signal system: PAL/NTSC switchable Resolution ratio(horizontal center): 700TVL Video output: 1.0Vp-p/75Ω Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB White balance: off Exposure mode: electron exposure Electronic shutter: 1/50(1/60) - 1/100000 S Gamma correction: 0.45/1.0 Synchronization method: inter-sync Camera lens: standard 2.1mm Lens operating voltage: DC 5-12V Working current: 70mA (low power consumption) Working temperature: -20℃~-60℃ Humidity: 0%~98% 5.8G 40CH 0mW/25mw/200mw switchable VTX Supports TBS SmartAudio Transmitting power: 0mW/25mW/100mW/200mW switchable Channel: 40CH Full video format: NTSC/PAL Input voltage: 7V~24V Power dissipation: +12V/600MW Size: 25×20×6mm Weight: ≤3.2g (except antenna) With copper pipe mini antenna (ipex antenna) Make sure the antenna is installed at the output end before powering up to avoid damaging internal components. 3030 4-blade propeller Material: PC Mounting hole: 5mm Center thickness: 6mm Quantity: 5 pairs Color: black, red, yellow, green Weight: 5g a pair Delivery color randomly (5 pairs of propellers are the same color) Lipo Battery Not included Recommend 2-3S 450-650mah Package included: 1 x 140mm racing frame kit 2 x 1607 2800KV brushless motor CW 2 x 1607 2800KV brushless motor CCW 1 x 4 IN 1 20A BLHeli_S ESC 1 x Customized F4 flight controller 1 x 700TVL CMOS camera 1 x 5.8G 40CH 0mw/25mw/200mw switchable VTX 2x 3030 4-blade propeller CW 2 x 3030 4-blade propeller CCW
