Happymodel Larva X 100mm Crazybee F4 PRO V3.0 2-3S 2.5 Inch RC FPV Racing Drone BNF w/ Runcam Nano2
November 18, 2019
Edit
US $95.99
Original Price : US $95.99 (0%)
Limited Price Happymodel Larva X 100mm Crazybee F4 PRO V3.0 2-3S 2.5 Inch RC FPV Racing Drone BNF w/ Runcam Nano2 with Free Worldwide Shipping!
4.34
Related Products :
Happymodel Sailfly-X Sailfly X 105mm Crazybee F4 PRO 2-3S Micro FPV Racing Drone PNP BNF w/ 25mW VTX 700TVL Camera
Happymodel Upgraded EX1103S 1103 7000KV 2-3S Brushless Motor for RC Drone FPV Racing Toothpick Mobula7 Larva X BetaFPV
Happymodel Mobula7 75mm Crazybee F3 Pro OSD 2S Whoop FPV Racing Drone 700TVL Standard Version FRSKY/FLYSKY/DSM BNF
Runcam Nano 2 700TVL 1/3 CMOS 2.1mm FPV Camera Special w/ Diamond VTX 5.8G 40ch VTX DVR for Mobula7 Larva X RC FPV Racing Drone
Product description
[4000101564928]Happymodel Larva X 100mm Crazybee F4 PRO 2-3S 2.5 Inch FPV Racing Drone BNF w/ Runcam Nano2 CameraSpecification:Brand Name: HappymodelModel:Larva XItem Name:100mm 2-3S 2.5 Inch FPV Racing DroneWheelbase: 100mmSize: 88x88x45mm (without propellers)Weight: 50g (without battery)Drone Version: BNF ( With Receiver & Without Battery)
Happymodel EX1103 7000KV Motor
Mode: EX1103
KV options: KV7000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter: 1.5mm
Motor Dimension(Dia.*Len):13.5x16mm
Weight:3.7g
Crazybee F4 Pro V3 Flight Controller
(Frsky version)CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
(Flysky version) CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS
(No RX version) CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000 (SPI connection)
Board Size: 28.5x28.5mm
Power Supply: 2-4S battery input (DC 7-17V)
Built-in 10A (each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
No RX version need to add external Receiver
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 70A
Current meter scale set to 470
Built-in 5V 1A BEC
Built-in voltage detection
Onboard 10A 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Con. Current: 10A
Burst Current: 12A (5S)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600
OnboardFrsky D8 Receiver Version
(Internal Frsky NON-EU receiver Version)
SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Internal Flysky Receiver Version
SPIBUSreceiver
Protocol:AFHDSandAFHDS-2ASwitchable
Channels:8ch(AFHDS)or14ch(AFHDS-2A)
Nogroundinterference(Transmitterandreceiver1mfromtheground):300m
Failsafesupport
External TBS Crossfire Receiver version
CRSF Protocol , Official TBS transmitter compatible
External DS MX Receiver version
Frequency range: 2.403-2.479Ghz
Input power: 3.3V -- 5V
Response time: 22ms / 11ms
Resolution: 1024/2048
Display method: LED
Operating voltage: 3.3V
Working current: 60MA
Size: 18mm*13mm*5mm
Weight: 0.9 g
Antenna length: 30mm
Data format: Serial port
Protocol: DS M2/DS MX
Distance: no ground interference (1 m from the ground ) more than300m
External Frsky RXSR Receiver version
Weight: 1.5g
Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
Operating Voltage Range: 3.5V~10V
Operating Current:70mA@5V
Firmware Upgradable
Compatibility: FrSky X Series modules and radios in D16 mode
Could support Frsky New ACCST Protocol ( Upgrade firmware)
HappymodelDiamond_VTX
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 250mA~510mA(type)
Antenna: RG178 antenna
U.FL interface
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smartaudio ready
Weight: 3g without antenna
Video Output Size: VGA (640x480)
Video Output format: NTSC
Record video size : 1280x720 @25FPS
TF Card support: Max.32G
Interface: JST SH1.0 3pin for Camera
JST SH1.0 5pin for Connect with F3/F4 Flight controller
Compress Format: AVI
Runcam NANO2 FPV Camera
Model: Nano 2
Image Sensor: 1/3" CMOS
Horizontal Resolution: 700TVL
Lens: 2.1mm(M8) FOV 155°
Signal System: NTSC / PAL
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current : 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 3.2g
Dimensions: 14x14x16mm ( LxWxH)
Recommend Lipo Battery
( All Version Don't Include)
Recommend2S 450mAh Lipo /3S 300mAh/350mAh Lipo Battery

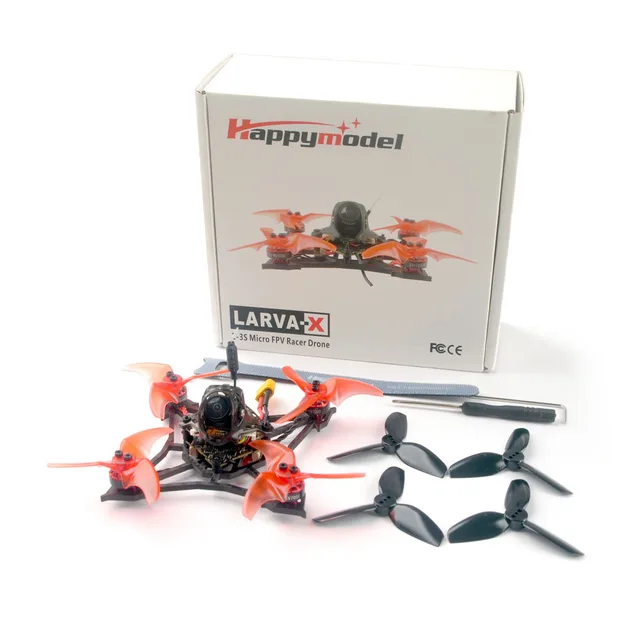

Features:- New Crazybee F4 PRO V3.0 AIO Flight controller 2-4s Lipo Compatible- Powerful and smoothly- Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles- Camera Angle adjustable- VTX power switchable 25mw~200mw- Smartaudio ready , change VTX bands, powers, channels via OSD- Receiver option: Frsky D8/ Flysky / DSMX / Frsky RXSR/ TBS CRSF- Diamond VTX Ready- Compatible both for 2-3S Lipo/LIHVPackage Included:1X Larva X frame1X Option1: Crazybee F4FR V3.0 PRO FC built-in Frsky NON-EU RX Option2: Crazybee F4FS V3.0 PRO FC built-in Flysky RX Option3: Crazybee F4FS V3.0 PRO FC with DSM2/DSMX RX Option4: Crazybee F4 V3.0 with external Frsky RXSR receiver Option5: Crazybee F4 V3.0 with external TBS Crossfire Nano RX4X 1103 KV7000 motor4X Micro Avan Rush Propeller 2.5 Inch ( 4 CW & 4 CCW)1X Runcam Nano2 Camera1X 5.8G 25-200mW VTX1X Propeller disassemble tool1X Screwdriver
