1PC PWM DC Motor Driver Module 9V-30V 100A Single Way Governor High Power H Bridge Drive Plate for
December 26, 2019
Edit
US $33.23
Original Price : US $34.98 (5%)
Best Price 1PC PWM DC Motor Driver Module 9V-30V 100A Single Way Governor High Power H Bridge Drive Plate for with FREE Shipping Worldwide!
4.64
Related Products :
Yuenhoang 1PC High Current Distribution Board Welded Power Management Module Hub Plate for RC Model Plant UAV Drone
1PCS RC Agriculture Drone Flowmeter 8mm Tube Black Interface Sensor Turbine Gauge for Palnt UAV
High Power Airplane 2204 2300KV Brushless Motor+5045 Propeller Props+Skywalker 20A ESC+Servo Tester Servotester f RC Toy Fan DIY
1pcs 4WD Motor 68000RMP/min Lightning High Speed Xiaobailong Four-drive Brother Engine for Tamiya Mini Racing Car
Product description

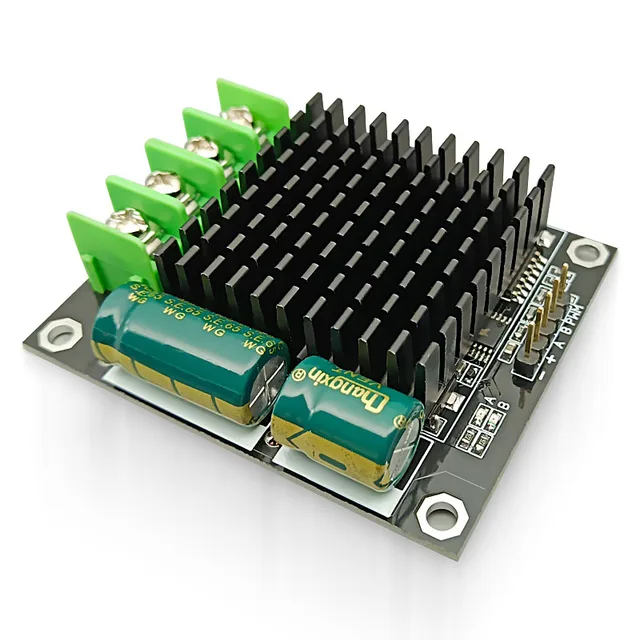

[33035141653]1PC PWM DC Motor Driver Module 9V-30V 100A Single Way Governor High Power H Bridge Drive Module Plate for RC UAV Drone DIY Acc Drive module features: 1. The basic components of the drive module are patches, with high integration, excellent layout of the board, very beautiful, small size, onboard single-channel high-power DC motor drive, the drive module size is only 59mm*49mm*15mm; 2. When driving the motor, the maximum rated current of the module can reach 100A, and the on-resistance is only 0.0016 ohm; 3, the switching frequency is high, up to 60KHZ, which effectively avoids the unpleasantness caused by the low frequency of the debugging motor; 4, the control interface is very simple: When A1.B2=0.0 is the brake; When A1.B2=1.0, it is forward; When A1.B2=0.1, it is reversed; PWM wave input (motor speed adjustment); Pin - for common ground with the control board; Pin + is a 5V200mA control voltage output, 6, 3.3V and 5V MCU can control this module, and only need one motor power (limit 9V~30V); The positioning holes 3mm are distributed in four, each spacing is 52mm*42mm; Package includes: 1PC X drive module
