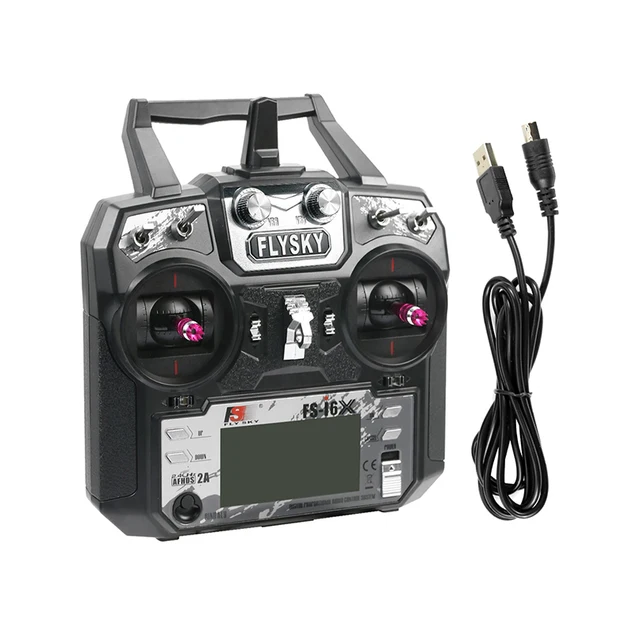

Flysky FS-i6X 2.4G 10CH/6CH Transmitter TX Remote Controller For Helicopter Fixed-wing Glider Multi
December 06, 2019
Edit
US $39.47
Original Price : US $45.89 (14%)
Limited Offer Flysky FS-i6X 2.4G 10CH/6CH Transmitter TX Remote Controller For Helicopter Fixed-wing Glider Multi with FREE Shipping Worldwide!
4.40
Related Products :
RadioLink with R12DS Receiver AT10 II 2.4Ghz 12CH RC Transmitter PRM-01 Voltage Return Module for RC Drone Quadcopter
FlySky FS-i6 Remote Controller 2.4G 6CH AFHDS RC Transmitter With FS-iA6 FS-iA6B Receiver for Airplane UAV Multicopter DIY Drone
Full Set DIY FPV Drone Model 4-axle Aircraft Kit HJ 450 Frame PX4 Flight Control 920KV Motor GPS FS-i6 Remote Controller Props
DIY Drone Model kit Multi QuadCopter UFO ARF KK V2.3 Circuit board+1000KV Motor+30A ESC+Lipo+F450 Flamewheel+8ch TX&RX+propeller
Product description
[32851602304]RM1641845738615667
Flysky FS-i6X 2.4GHz 10CH RC Transmitter With i-BUS IA6B IA10B X6B Receiver For RC Heli Quadcopter Airplane
FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA x 4( No included )
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
Package Included:
1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter (not include Receiver)
Features:
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.
Bidirectional Communication
Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
Multi-channel Hopping Frequency
This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down o interference, while using less power and maintaining a strong reliable connection.
Unique ID Recgnition System
Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
Low Power Consumption
The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
Newest Flysky FS-i6X 2.4GHz 10CH RC Transmitter With i-BUS IA6B IA10B X6B Receiver For RC Heli Quadcopter Airplane
FS-i6X Specifications:
Item: FS-i6X RC Transmitter
Channel: 6-10 (Default 6, you could choose 7-10ch in setting)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
Bandwidth: 500KHz
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Chargeable: No
Antenna Length: 26mm (Dual Antenna)
Weight: 392g
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
Size: 174x89x190mm
On-line Update: Yes
Color: Black
Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
X6B i-BUS Specifications:
Brand Name: Flysky
Item: X6B i-BUS Receiver
Channels: 6(PWM), 8(PPM), 18(i-BUS)
Model Type: Multi-Totor
RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135
RF Power: No more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)
Power input: 4.0-8.4V
On-line Update: Yes(Wireless)
Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00
Features:
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented by FLYSKY is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.
Bidirectional Communication
Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
Multi-channel Hopping Frequency
This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down o interference, while using less power and maintaining a strong reliable connection.
Unique ID Recgnition System
Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
Low Power Consumption
The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
Package listing:
1x Flysky FS-i6X Transmitter
1x Flysky FS-X6B or FS-IA6B or FS-IA10B Receiver according to your option
