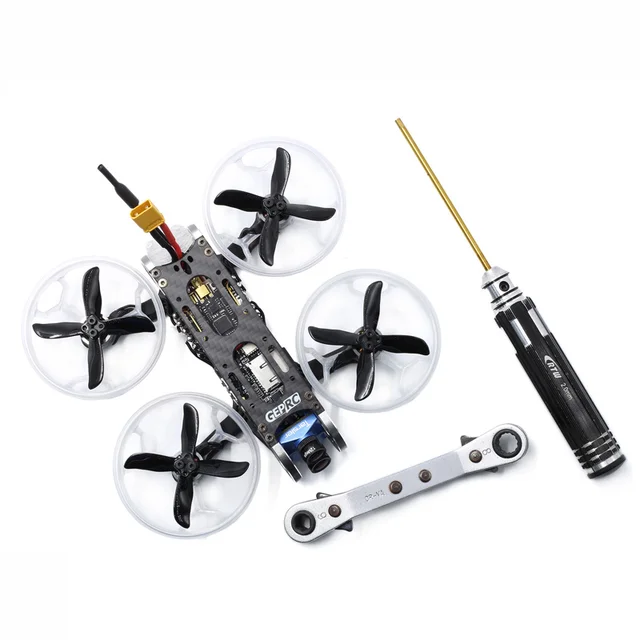

GEPRC CinePro 4K BNF/PNP FPV Racing Drone 4S Compatiable with F722/F405 Flight DALPROP Q2035C Props

December 27, 2019 Edit

US $235.73 Original Price : US $287.48 (18%)

Discount Offer GEPRC CinePro 4K BNF/PNP FPV Racing Drone 4S Compatiable with F722/F405 Flight DALPROP Q2035C Props with Free Shipping Worldwide!


 4.32

Buy on AliExpress


Product description

[4000155301979]

GEPRC CinePro 4K BNF/PNP FPV Racing Drone 4S Compatiable with F722/F405 Flight Controller DALPROP Q2035C Props 1105 5000kv motorSummary:We are glad to introduce you to CinePro 4K, which can accomplish some tasks that traditional aerial photographic aircrafts can not do. It is lightweight, compact and capable of recording 4K@30fps video with excellent quality and moving colors.We are very proud to choose STABLE PRO F722 DUAL GYRO, an AIO flight controller using STM F722 MCU and synchronous working dual ICM20689 gyros(currently most gyros are working asynchronously on other FCs). These provide you with a smooth and locked-in flight feeling. It is worth mentioning that the jelly problem that you may concern about will not happen to CinePro 4K. You can refer to the sample video.CinePro 4K uses the improved GEP-CX2 frame and newly designed propeller guard. It has perfect aerodynamic performance, safety, durability and high efficiency.In terms of power system, we use GR1105 kv5000 motor, which is balanced, smooth and very suitable for aerial photographic quads. It is recommended that 4S battery be used to achieve the best efficiency. 4S 450mAh battery for indoor, 4S 650mAh battery for outdoor. The safe flight time is more than 4 minutes.CinePro 4K is carefully assembled and debugged by GEPRC team. The BNF kit is bind & fly, the PNP kit needs your own receiver.Features:
HD Video Recording: 4K-30fps, 2.7K-60fps, 1080P-90fps.
Dual Camera System: 1200TVL FPV camera of competition-level, low latency within 10ms.
WIFI/APP support: Video recording parameters are adjustable by WIFI/APP.
Advanced Version: F722 Flight Controller, STABLE PRO F722 DUAL BL32 35A.
Basic Version: F405 Flight Controller, STABLE V2 F405 30A.
Black Box: 32Mb onboard flash memory.
500mW VTX Power: Effectively improves your flight distance.
Aerial Photography Friendly: No sight of propellers and propeller protection frames in your video.
Full Soft Mounted FC System: Provides a clean operating environment for gyro.
Say Goodbye to Jelly: Stable video, and comfortable FOV.
Improved GEP-CX2 Frame: Full 3K carbon fiber, 7075 aviation aluminum, High-precision CNC. Rugged and durable frame, Better protection for the 4K camera.
New Propeller Guard: Better airflow, Higher flight efficiency.
High Efficiency Motor: GEP-GR1105 5000KV Motors, 4S battery (450-650mAh) recommended.
Taillight Design: Eye-catching night view and lighting effects.
Exquisite Assembly Process: Eliminate any potential installation problems.Specification:
Frame:GEP-CX2(Improved version,Including Guards)
STABLE PRO F722 DUAL Gyro ICM20689ORSTABLE V2 F405
Camera:Caddx Tarsier 4K 1200TVL
Motor:GEP-GR1105 5000KV(4S lipo battery is Best)
Propeller:EMAX AVAN 2Inch orDalProp Q2035 4-blade
VTX 5.8G 500mW
Weight:Around 125g(without battery)STABLE PRO F722 DUAL Gyro ICM20689Version:Flight Controller:
Model:STABLE PRO F7 35A
MCU: STM32F722RET6
IMU: 2x ICM20689(SPI)
BlackBox: 32Mb onboard Flash
OSD: BetaFlight OSD w/ AT7456E chip
Firmware target: EXF722DUAL
Integrated LC Filter
Size: 26x26mm board, 20mm mounting holes (M2)ESC BLheli_32 2-6S 4in1:
MCU:STM32F051
Constant:35Amps
Burst:45Amps
Mounting Holes:20*20mm,M2
Supports Dshot1200,Proshot,Oneshot,Multishot
Current meter: Yes
Target: GEPRC-BL32-4IN15.8g 500mW VTX:
Input voltage: 5V
Channel: 48
Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW
Connector type: MMCX Connector
Traditional button
IRC Tramp protocolSTABLE V2 F405Version:Flight Controller:
Model:STABLE V2 F4 30A
MCU: F405
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
BEC Output: 5V 3A
Integrated LC Filter
Firmware target: OmnibusF4SDBLheli_S ESC 2-5S 4in1:
MCU:STM32F051
Input:2-6s lipo
Constant:35Amps
Burst:45Amps
Supports Dshot1200,Proshot,Oneshot,Multishot
Current meter: Yes
Target: GEPRC-BL32-4IN15.8g 500mW VTX:
Input voltage: 5V
Channel: 48
Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW
Connector type: MMCX Connector
Traditional button
IRC Tramp protocolYou might need the following equipment to fly
Remote control: You can choose: Frsky X9d or something like that
Goggle: Such as FatShak V2 or something like that
Battery: The recommends using the 4S 450mAh-650mAh battery.Include:as your choice
