Product description

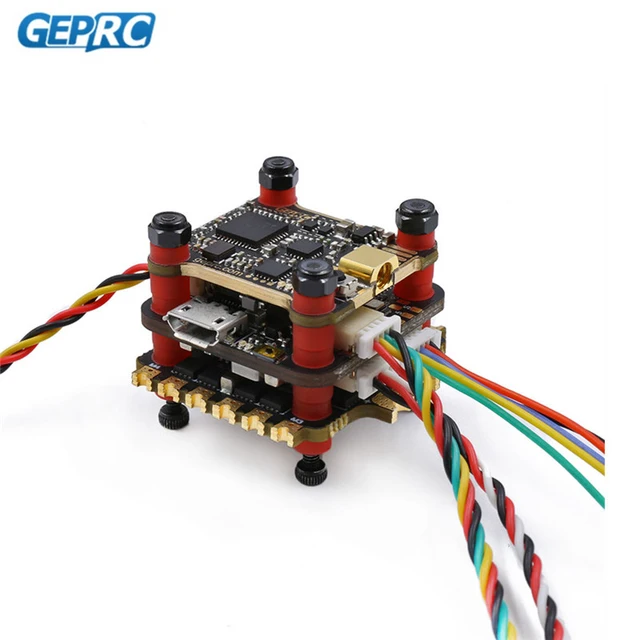

[33045180322]Geprc Stable V2 F4 Stack F4 Flight Controller AIO OSD BEC & 30A BL_S / 35A BL_32 4in1 ESC & 500mW VTX
Specification:
Brand Name: Geprc
Model: Stable V2 F4
Item Name: F4 Flight Controller & 30A / 35A 4in1 ESC & 5.8G 500mW VTX Stack
Optional ESC Version: 30A / 35A
F4 Flight Controller
MCU: F405
IMU: MPU6000 Gyro/Accelerometer (SPI)
BlackBox: 32Mb onboard Flash
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
BEC Output: 5V 3A
Integrated LC Filter
Input Voltage: 2-6S Lipo
Firmware target: OmnibusF4SD
Size: 26x26mm board, 20mm mounting holes (M2)
35A BLheli_32 4in1 ESC ( 35A Advanced Version)
MCU:STM32F051
Input:2-6S lipo
Constant: 35Amps
Burst: 45Amps
Dimensions:31*31mm(including the power pads)
Mounting Holes:20*20mm,M2
Supports Dshot1200,,Oneshot,Multishot
Current meter: Yes
Target: GEPRC-BL32-4IN1
30A BLheli_S 4in1 ESC ( 30A Basic Version)
Input:2-5S Lipo
Constant: 30Amps
Burst: 35Amps
Dimensions:31*31mm(including the power pads)
Mounting Holes:20*20mm,M2
Supports Dshot600 Oneshot,Multishot
Current meter: 100
Target: G_H_30
5.8G 48CH 500mW VTX
Input voltage: 5V
Channel: 48
Power transmission: 0mW(Pit mode) / 25mW / 100mW / 200mW / 400mW/ 500mW
Size: 24 * 26 mm
Mounting Holes Dimension: 20mm x 20mm
Connector type: MMCX Connector
BEC Output: 5V/1A for Camera of Flight Controller
Weight: 2.3g
- Traditional button
- IRC Tramp protocol
Package Included:
1x F4 Flight Controller
1x 35A ESC OR 30A ESC
1x FPV Transmitter Module
1x Antenna
1x Capacitor
1x bag of Cables
1x bag of Screws
