New arrival FrSky G-RX6 6/16 telemetry Receiver PWM SBUS Outputs designed for RC Drone FPV Racing Q

December 16, 2019 Edit

US $41.42 Original Price : US $43.6 (5%)

Limited Offer New arrival FrSky G-RX6 6/16 telemetry Receiver PWM SBUS Outputs designed for RC Drone FPV Racing Q with Free Shipping Worldwide!


 4.64

Buy on AliExpress


Product description

[32900862030]

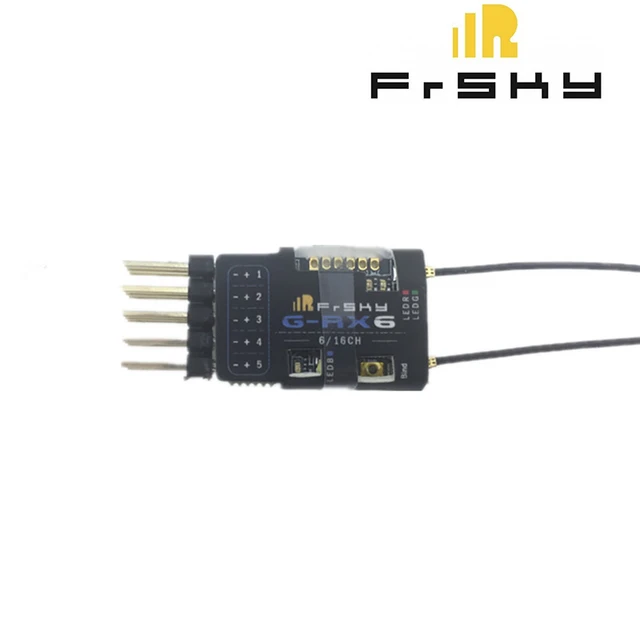

New arrival FrSky G-RX6 6/16 telemetry Receiver PWM SBUS Outputs designed for RC Drone FPV Racing Quadcopter

This FrSkyG-RX6 is designed to be used with Gliders. FrSky built a variometer sensor right into the X6R receiver, this will give you telemetry data like altitude and vertical speed. The G-RX6 features 6 PWM outputs with higher precision and lower latency. The latencyof the PWM output is 9ms less than that of the X6R,in high speed mode. Italso supports the redundancy function, so it can be used in conjunction with other receivers.TheG-RX6and the whole RX-line has a 40% increased operating range compared tothe previous X series receivers.



Small and High sensitivity (40% increase of the range compared to previous X series receivers)
Integrated with high precision variometer sensor
Higher precision PWM and Low latency PWM output
Lower power consumption
Redundancy function supported
Smart Port enabled and telemetry data transmissionsupported
Battery voltage detectionsupported
2 detachable IPEX 4 Connector antennas
PCB protection with the comformal coating craftwork



Dimension: 21.1×13×7.3mm (L×W×H)
Weight: 2.2g / 2.6g (with two antennas)
Number of Channels: 16CH (1-6CH PWM from conventional channel outputs, 1-16CH from SBUS OUT port)
Operating Voltage Range: 3.5V-10V
Operating Current: 100mA@5V
Operating Range: >2km
Servo Frame Rate: 9ms (HS—High Speed Mode)/18ms (FS—Normal Speed Mode
