New Holybro Kakute F7 AIO / HDV F745 / Mini Flight Controller & Tekko32 ESC for RC FPV Drone Quadco

December 27, 2019 Edit

US $39.04 Original Price : US $41.09 (5%)

Best Offer New Holybro Kakute F7 AIO / HDV F745 / Mini Flight Controller & Tekko32 ESC for RC FPV Drone Quadco with Free Shipping Worldwide!


 4.54

Buy on AliExpress


Product description

[4000192803604]

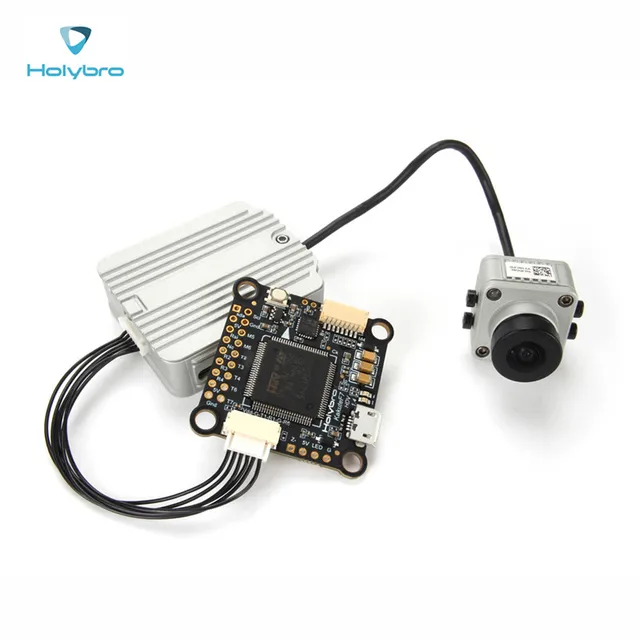

Holybro Kakute F7:The Holybro Kakute F7 flight controller makes it easy to build your multirotor. It integrates flightcontroller (FC) and on-screen display (OSD) in one. The Kakute F7's layout makes it easy to wire up theother components of the multirotor while keeping the build neat and tidy.IMU upgraded to MPU6000,Re-designed and more reliable damping structure
Holybro kakute ----F7 AIO Flight Controller
Specification(manual):MCU: STM32F745 32-bit processor IMU: ICM20689 (SPI) Barometer: BMP280 Current Sensor: Approximately 130 amps maximum measurable value USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART) 6 hardware UARTS (UART1,2,3,4,6,7) All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”. Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported. TF card for Blackbox logging Dimensions: 35x48x7mm (includes foam-mounted gyro board in height) Mounting Holes: Standard 30.5mm square to center of holes
Weight: 11g
Package included1x kakute F7 flight controller
Holybro kakute ----F7 HDV F745 Flight Controller
Specifications:MCU: STM32F745 32-bit processorIMU:PMU6000Barometer: BMP280USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)6 hardware UARTS (UART1,2,3,4,6,7)All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work onany UART without “uninvert hack”.Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are notsupported.TF card for Blackbox loggingDimensions: 35x35mmMounting Holes: Standard 30.5mm square to center of holesWeight: 8g
Package included
1 x Kakute F7 HDV Flight Controller
Holybro kakute ---- F7 Flight Controller
SpecificationsMCU: STM32F745 32-bit processorIMU: MPU6000 (SPI)Barometer: BMP280Current Sensor: Approximately 130 amps maximum measurable valueUSB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)6 hardware UARTS (UART1,2,3,4,6,7)All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work onany UART without “uninvert hack”.Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are notsupported.TF card for Blackbox loggingDimensions: 35x41x7mm (includes foam-mounted gyro board in height)Mounting Holes: Standard 30.5mm square to center of holesWeight: 8g
1x Kakute F7 flight controller1x foam1x FFC1x JST SH 8pin 150mm cable
Holybro kakute ----F7 Mini Flight Controller
Specification:Brand Name: HolybroModel: KAKUTE F7 MiniItem Name: F7 2-6S Flight Controller with BaroMCU: STM32F745VGH6 32-bit processor,216MHz, 320Kbytes RAM, 1Mbytes FlashIMU: ICM20689 (SPI)Barometer: BMP280USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)5.5 hardware UARTS (UART1,2,3,4,6,7)Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.Onbord 16Mbytes for Blackbox logging5V Power Out: 1.0A max3.3V Power Out: 0.2A maxDimensions: 33x26x6mmMounting Holes: Standard 20mm square to center of holesWeight: 4g
1x F7 Flight Controller Board 1x M2 Rubber rings1x JST SH 8pin 30mm cable1x JST SH 8pin 150mm cable
Holybro kakute F7---- F7 and Tekko32 ESC
Specifications:
Tekko32 35A 4 In 1 ESCBLHELI32 ESC with F3 MCU, give more smooth control and fasterresponding speed. Supports up to 55A burst and 40A continued.Specification:Supports 3-6S lipo input35A continuous current, 50A burstMounting holes 30.5x30.5mmSize: 55*40*6.4mmWeight: 17g
1x Kakute F7 flight controller1x Tekko32 40A 4 In 1 ESC1x Electrolytic capacito: 1000uF 35v1x 8pin to 8pin 1mm pitch 65mm cable1x 8pin to 8pin 1mm pitch 25mm cable
Holybro kakute F7----F7 HDV Tekko32 ESC
Specifications:Tekko32 F3 HDV 40A ESC 32bit ESC with BLHELI32 firmwareSupports 3-6S lipo inputPWM input, TLM supportedVoltage output (VBAT)NO BECSupports oneshot / Multishot / Dshot PWMMounting holes 30.5x30.5mmSupports damped lightF3 MCU, runs double faster than F051Extra Cap needed for high current or 6s usageDimensions: 44x37x6mmWeight: 11.6g
1 x Kakute F7 HDV Flight Controller1 x Tekko32 F3 HDV 40A Brushless ESC1 x Electrolytic capacito: 1000uF 35v1 x 8pin to 8pin 1mm pitch 65mm cable1 x 8pin to 8pin 1mm pitch 25mm cable
