Matek Systems Mateksys F722-Mini OSD Dual Gyro/Acc 32M Flash 5V/2A BEC Flight Controller for RC FPV
January 02, 2020
Edit
US $36.76
Original Price : US $36.76 (0%)
Discount Price Matek Systems Mateksys F722-Mini OSD Dual Gyro/Acc 32M Flash 5V/2A BEC Flight Controller for RC FPV with Free Shipping Worldwide!
4.72
Related Products :
Matek Systems F722-STD F722 STD STM32F722 Flight Controller Built-in OSD BMP280 Barometer Blackbox for RC Models Multicopter
Presale Matek Systems Ublox SAM-M8Q GPS Module Support GLONASS Galileo QZSS SBAS for RC Multirotor Long Range FPV Racing Drone
MATEKSYS Matek ANALOG PIXEL OSD MODULE
Matek System Mateksys VTX-MINI VTX mini 5.8G 40CH Pit/25/200/400/800mW FPV Video Transmitter VTX for FPV Racing RC Drone
Product description

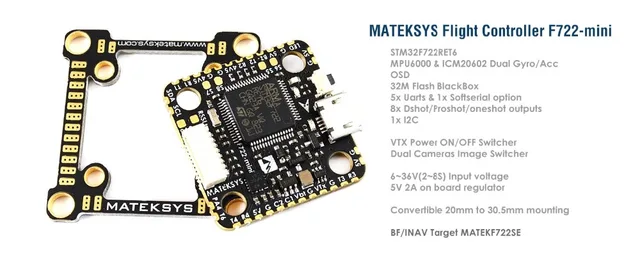

[32970407193]FC Specifications
MCU: 216MHz STM32F722RET6
IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)
OSD: AT7456E (SPI)
Blackbox: 32M-byte Flash memory (SPI)
Baro: No barometer built-in. support external barometer module (I2C)
5x Uarts (1,2,3,4,6) with build-in inversion
1x Softserial supported
8x Dshot/Proshot/oneshot outputs
1x I2C
1x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4)
3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1)
Dual Camera image switchable via AUX (modes tab-user2)
Convertible 20mm to 30.5mm mounting
Camera control: Yes
Smartaudio & Tramp VTX protocol: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Additional ADC for INAV analog airspeed
Power
Input: 6~36V (2~8S LiPo)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
Battery Voltage Sensor: 1:10 (Scale 110)
No Current Sensor built-in, supports external current sensor of PDB/4in1
FC Firmware
BetaFlight / INAV
Target: MATEKF722SE
Physical
Mounting
20 x 20mm/Φ3mm with Silicon Grommets
20 x 20mm/Φ2mm with Silicon & Brass Grommets
30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets
Dimensions: 28 x 28 mm
Weight: 5g
Including
1x FC F722-mini
1x 20mm to 30.5mm conversion plate
6x Silicon grommets M4 to M3
6x Brass grommets M3 to M2
1x SH1.0_8pin cable 5cm
2x SH1.0_8pin connectors
