Pixhawk 4 Mini + Pixhawk4 GPS Module + PM06 V2 Power Management Board Holybro Autopilot Flight Cont

January 01, 2020 Edit

US $111.06 Original Price : US $116.9 (5%)

Cheap Price Pixhawk 4 Mini + Pixhawk4 GPS Module + PM06 V2 Power Management Board Holybro Autopilot Flight Cont with FREE Shipping Worldwide!


 4.69

Buy on AliExpress


Product description

[4000293659935]

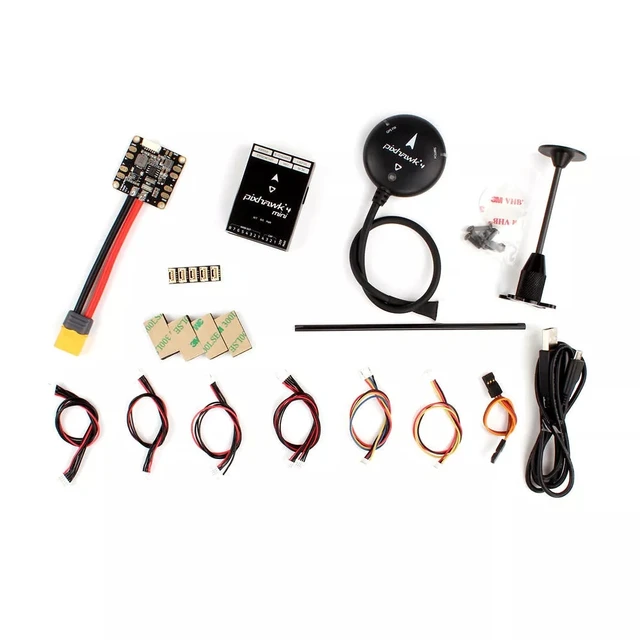

Pixhawk 4 Mini + Pixhawk4 GPS Module + PM06 V2 Power Management Board Holybro Autopilot Flight Controller STM32F765 For RC dronePackage Included (With GPS)Pixhawk4 mini * 1Pixhawk4 GPS MODULE * 1PM06 V2 Power Management BoardI2C splitter board * 16 to 6 pin cable (power) * 14 to 4 pin cable (CAN) * 16 to 4 pin cable (data) * 16 to 4 pin and 4 pin "Y" cable * 16 to 6 pin cable (debug) * 1PPM / SBUS out cable * 1XSR receiver cable * 1DSMX receiver cable * 1SBUS receiver cable * 1USB cable * 1Mount 'X'type folding pedestal * 170mm & 140mm carbon rod stand off * 2Foam Set * 1Pixhawk4 mini Quick Start Guide * 1Package included (Without GPS)Pixhawk4 mini * 1PM06 V2 Power Management Board * 1I2C splitter board * 16 to 6 pin cable (power) * 14 to 4 pin cable (CAN) * 16 to 4 pin cable (data) * 16 to 4 pin and 4 pin "Y" cable * 16 to 6 pin cable (debug) * 1PPM / SBUS out cable * 1XSR receiver cable * 1DSMX receiver cable * 1SBUS receiver cable * 1USB cable * 1Foam Set * 1Pixhawk4 mini Quick Start Guide * 1Pixhawk 4 MiniThe Pixhawk® 4 Mini autopilot is designed for engineers and builders looking to unlock the power of Pixhawk 4 but are working with smaller drones. Pixhawk 4 Mini takes the FMU processor and memory resources from the Pixhawk 4 while providing interfaces that are usually unused. This allows the Pixhawk 4 Mini to become small enough to drone into a 250mm racer.Pixhawk 4 Mini was designed and developed in collaboration with Holybro® and Auterion®. It is based on the Pixhawk FMUv5 design standard and is optimized to run PX4 flight control software.Pixhawk4 mini firmware version: 1.8.0 devQuick summaryMain FMU processor: STM32F76532-bit Arm Cortex-M7, 216 MHz, 2 MB memory, 512KB RAMOn-board sensors:Accel / Gyro: ICM-20689Accel / Gyro: BMI055Magnetometer: IST8310Barometer: MS5611GPS: ublox Neo-M8N GPS / GLONASS receiver; Integrated magnetometer IST8310interfaces:8 PWM outputs4 dedicated PWM / capture inputs on FMUDedicated R / C input for CPPMDedicated R / C input for Spektrum / DSM and S. Bus with analog / PWM RSSI input3 general purpose serial ports2 I2C ports3 SPI buses1 CANBuses for CAN ESCAnalog inputs for voltage / current of the battery2 additional analog inputPower System:Power supply input: 4.75-5.5VUSB power input: 4.75-5.25VServo rail input: 0-24VMax current measurement: 120AWeight and dimensions:Dimensions: 38x55x15.5mmOther properties:Operating temperature: -40 to 85
