Product description

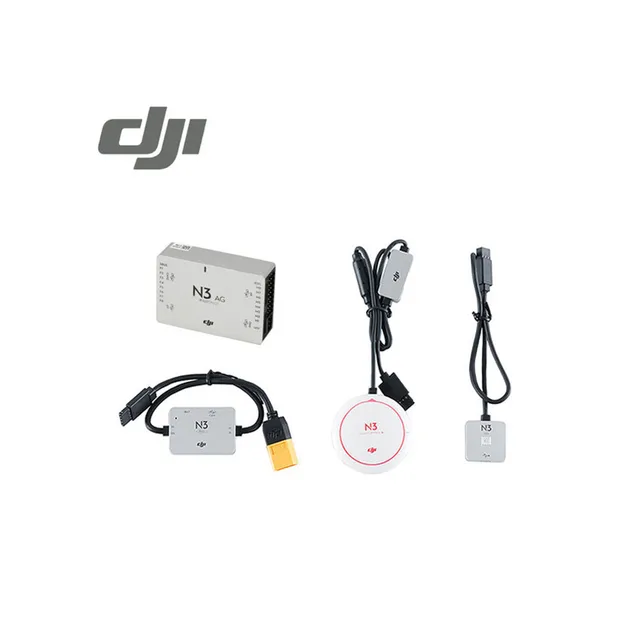

[32889428055]DJI N3 AG Flight Controller ( Agriculture Version ) Dual IMU Redundancy Sport Mode Drone Quadcopter SDK Fly Control Original
N3_AG
The main performance parameters
Support for multiple rotorcraft types Quadrotors: I4, X4
Six rotor: I6, X6, Y6, IY6
Eight Rotors: X8, I8, V8
Recommended battery type 3S ~ 12S lithium polymer battery or DJI smart battery
External receiver type Lightbridge 2, S-BUS, D-BUS
Support external DJI products iOSD, DATALINK PRO, and so on
System Requirements Windows 7/8/10 (32 or 64 bit)
Mac OS
Built-in features intelligent flight mode
Redundant IMU design
Built-in data record 8GB (black box)
External SBUS receiver
Lightbridge 2 receiver
Includes 4 channels of configurable output 8 channels
SDK
hardware
Total weight: 132g
Master: 46g
GPS-Compass: 37g
PMU: 36g
LED: 13g
Power consumption is generally 3.3W
Maximum 4.8W
Size Master: 57.9mm x 39mm x 17mm
PMU: 40mm x 28.2mm x 11.2mm
LED: 25mm x 25mm x 6.3mm
GPS-Compass: 50mm (diameter) x 12.2mm
Operating temperature -10 ° C to + 55 ° C
Expand the function
PWM input and output PWM input and output
IOSD data storage Built-in storage
Reference software DJI ASSISTANT 2
SDK
SDK Mobile SDK
Onboard SDK
SDK Port API / CAN2
Related:
Flight characteristics
Hover accuracy vertical: ± 0.5m
Level: ± 1.5m
The maximum wind resistance ability <10m / s
The maximum yaw rate is 150 deg / s
The maximum tilt angle of 25 °
The maximum lifting speed increased 4m / s
Drop 3m / s
​
