DIY FPV mini drone GEPRC FlyShark GEP-BX4 BX5 BX6 kvadrokopter frame True X carbon fiber Quadrocopt

May 29, 2020 Edit

US $48.99 Original Price : US $48.99 (0%)

Discount Price DIY FPV mini drone GEPRC FlyShark GEP-BX4 BX5 BX6 kvadrokopter frame True X carbon fiber Quadrocopt with Free Worldwide Shipping!


 4.76

Buy on AliExpress


Product description

[32759648736]

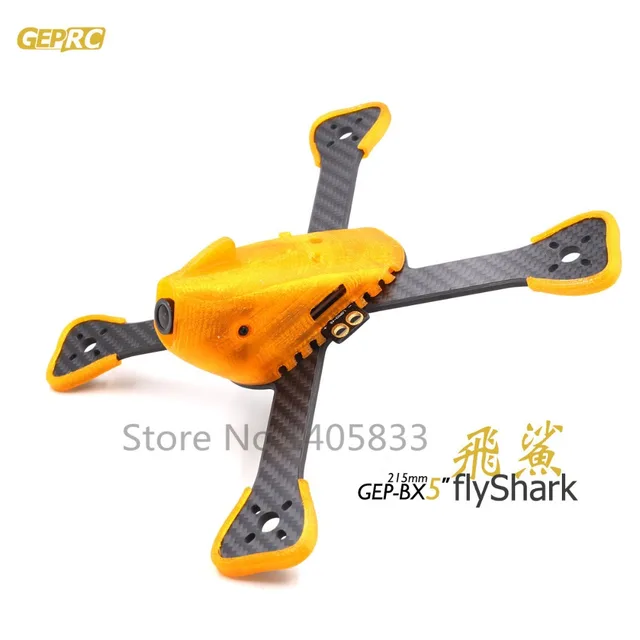

DIY FPV mini drone GEPRC FlyShark GEP-BX4 BX5 BX6 kvadrokopter frame True X carbon fiber Quadrocopter FPV Racing RC Drone frame







Product Description:



The For racing contest and models, streamlined design, reduce the resistance of 50%.



Whole frame using 3K ultra light carbon fiber board 3D +TPU print.



We call it the flying shark (FlyShark), the model is GEP-BX. This is the biggest characteristic of the drag coefficient is extremely low, at least 50% to reduce the air resistance, combined with the 3D print TPU materials, very crashworthiness. Structure of "X Ture". There are 3 versions available, 4 inch (190mm), 5 inch (215mm), 6 inch (wheelbase 240mm), are using 4mm thickness of the floor.



Lens bin perfect support Hs1177, Hs1190, swift, Plus, OWL, etc. most of the lens. Motor protection like a fish, to protect the motor to a certain extent, very good.



The whole machine adopts YFS screws, 12.9 levels of strength. Random comes with BEC, 5V/12V PDB output.










Parameters:






Model: GEP-BX






Nickname: FlyShark flying shark






BX 5 inch version weight: 90g






BX 4 inch version weight: 82G






BX 6 inch version weight: 100g













BX 5 inch wheelbase: 215mm






BX 4 inch wheelbase: 190mm






BX 6 inch wheelbase: 240mm






Upper plate and lower plate thickness: 4mm






Canopy:TPU material

















Recommended:









flight control: F3 / Naze32 / CC3D









Motor: 2204/2205/2206/2305/2306









ESC: mini 20A-30A









propeller:4-inch 5-inch 6-inch









Battery: 3S 1300mAh ~ 4S 1300mAh



















Features:









1 3K high strength carbon fiber board, to ensure that the framework is strong









2 canopy using TPU material, very soft, resistant to impact









3 canopy streamline design, minimal drag coefficient









4.5 inch wheelbase 215mm, 4 inch wheelbase 190mm, 6 inch wheelbase 240mm









5 YFS screws, 12.9 levels of hardness









6 True X structure









7 support HS1190, HS1170, Swift, OVL and other lenses









8 motor position widened, like fish, the collision is not easy to hit the motor









9 lens adjustable, 25-60 degree









10 with a PDB plate, integrated XT60, BEC (5/12v output)



















Package list:








GEP-BX flyshark quadcopter frame * 1 set



Gift:T5045BN propellers 3blades * 2 pairs



(NOTE:the flight control,antenna and camera which on the picture is not included!!!)
