Product description

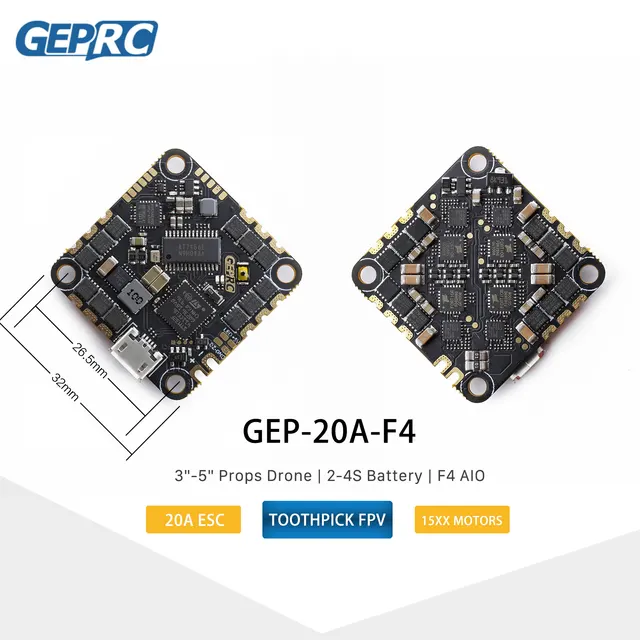

[4000567265028]GEPRC GEP-20A-F4 AIO Flight control Toothpick 2-4S For Toothpick Whoop DIY FPV Racing Drone
Summary:
The new high performance AIO brushless FC, GEP-20A-F4 was added to the toothpick drone
Compared with the previous 12A version, the new GEP-20A-F4 can achieve a continuous current of 20A and a burst current of 30A.Maximum 4S battery support, recommended to use 12xx-15xx motor, with 3″-5″ size blade.This GEP-20A-F4 has strong flight performance, OSD input, extremely light weight, let your new toothpick to build a higher flight performance through the aircraft.
Specifications:
Model Name:GEP-20A-F4
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
FC Firmware target:MATEKF411
OSD: BetaFlight OSD w/ AT7456E chip
Baro:NO
Current Monitoring : Support
Betaflight OSD : Support
External Buzzer : Support
LED : Support
USB Port: MicroUSB
BEC Output: 5V@1A
Integrated LC Filter
ESC MCU: BB21F16G
Continuous current: 20A
Peak current: 30A
Input:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Current meter: 210
Target: G_H_30
Size: 32x32mm board,26.5mm mounting holes (M2)
Installing Hole: 26.5×26.5mm, M2
Receiver Support:
Frsky XM/XM+/R-XSR
Futaba Receiver
DSM/DSMX
FlySky Receive
TBS Crossfire Receiver
AC900
Most receivers that support SBUS
Feature:
Strong performance, cont.current 20A, burst current 30A
BLhelis_S 20A, maximum support 4S battery,Built-in current sensor
Compatible with 12xx-15xx motor installation, with 3″-5″ size propeller
STM32F411 flight control, Super-high Running Frequency
MPU6000 gyroscope
External Buzzer : Support
LED Control : Support
Designed with silica gel shock absorbing column, it can reduce the high frequency vibration caused by frame and motor, allowing the flight control to operate in a noiseless environment
The overall weight is about 7.3g
Include：
– 1 x GEP-20A-F4
– 1 x Power cable
– 8 x screw
– 4 x Soft silicone
