DIY FPV RC drone GEPRC Viper 220mm GEP-TSX5 / thickness 5mm Arms Quadcopter 7075 aviation aluminum

October 28, 2020 Edit

US $50.29 Original Price : US $50.29 (0%)

Best Offer DIY FPV RC drone GEPRC Viper 220mm GEP-TSX5 / thickness 5mm Arms Quadcopter 7075 aviation aluminum with Free Shipping Worldwide!


 4.76

Buy on AliExpress


Product description

[32830062648]

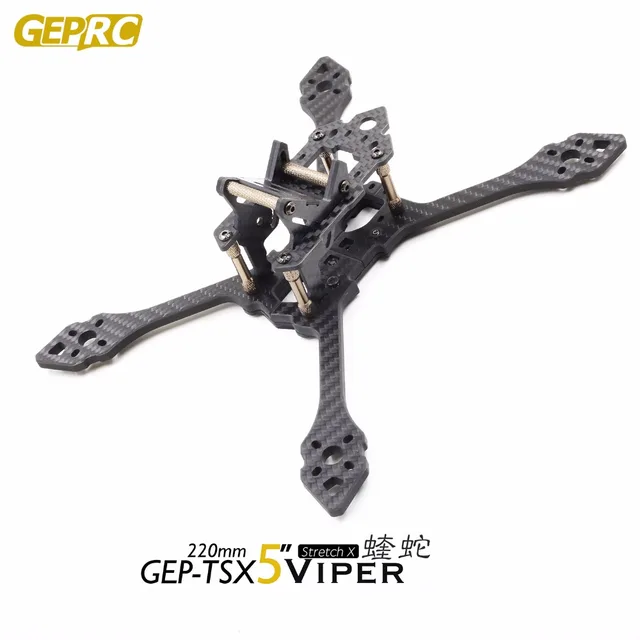

DIY FPV RC drone GEPRC Viper 220mm GEP-TSX5 / thickness 5mm Arms Quadcopter 7075 aviation aluminum & 3k carbon fiber frame














Introduction:









This model GEP-TSX5, the name Viper (Viper), Viper is a poisonous snake









GEP-TSX5 uses 3k carbon plate, screw with YFS 12.9 hardness screw. The most prominent feature of the GEP-TSX5 is the use of a stretched structure (Stretch-X) to make the rack more suitable for the race. In order to minimize the wind resistance, our design team decided to use a thickness of 5mm width of only 9mm arm. The motor seat is extended to protect the motor from damage. Camera location can be suitable for Runcam brand swift, swift2 and Foxeer brand HS1190 and so on. Adjustable range of 20-60 degrees. It is worth mentioning that the Gopro seat, adjustable angle range of 35-48 degrees, suitable for most of the flight scenarios, such as Racing and Freestyle.























characteristic:










-1. All carbon plates on the whole machine use 3K high strength carbon plate to ensure strong and durable









-2.Stretch X structure, to achieve rapid turn, high speed forward, suitable for racing with Freestyle fancy flight









-3.9mm wide, 5mm thick arm design, minimal drag coefficient









-4. The motor seat is re-designed to protect the motor to the greatest extent possible.









-5. Unique side plate structure, with locking aluminum column, to ensure the stability of the fuselage and the safety of the camera









-6. The rack comes with Gopro seat, adjustable angle, 35-58 degrees









-7. Wheelbase 220mm, with a wider air flow through









-8.YFS screw, 12.9 grade hardness









-9. The bottom of the fuselage with anti-slip stickers, effectively prevent the battery slide









-10. The battery protection board effectively prevents the battery from receiving shocks or piercing
















Recommended configuration: (but not included)






Flight Control: F3 / Naze32 / CC3D






Motor: 2204/2205/2206/2305/2306






Electricity: 20A-30A






Paddle: TSX5 with 5 inch paddle






Battery: 3S 1300mAh ~ 4S 1500mAh








































Package list:









1set GEP-TSX5 frame







Camera anddistribution boardis not included!
