GEPRC GEP-KX5 Elegant PNP/BNF 230mm Wheelbase frame kit combination for RC FPV Racing Drone Quadcop

October 21, 2020 Edit

US $237.99 Original Price : US $237.99 (0%)

Discount Price GEPRC GEP-KX5 Elegant PNP/BNF 230mm Wheelbase frame kit combination for RC FPV Racing Drone Quadcop with FREE Worldwide Shipping!


 4.56

Buy on AliExpress


Product description

[32981351785]

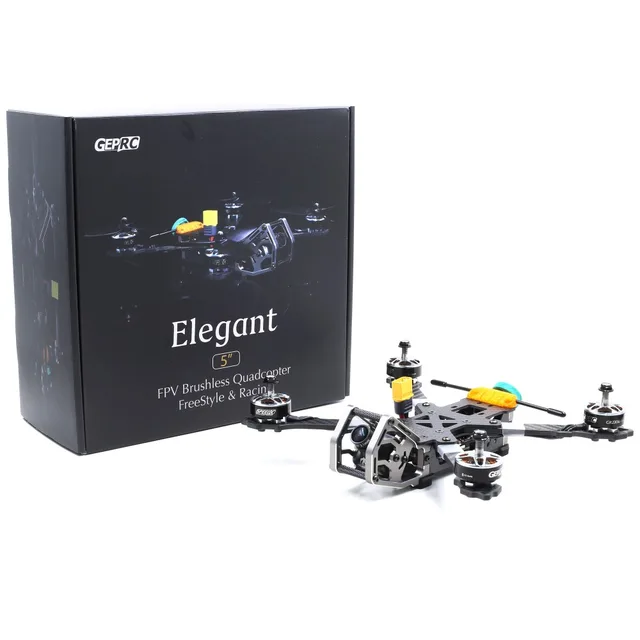

GEPRC GEP-KX5 Elegant PNP/BNF 230mm Wheelbase frame kit combination for RC FPV Racing Drone Quadcopter







Note: The amount of this product is high. If you choose AliExpress Standard Shipping, the AliExpress platform will make the original customs declaration of the product. If you need to pay customs duties, the buyer will handle it yourself! Thank you!














Description






Summary:






Elegant is a competition and freestyle Quadcopter that USES the GEP5040x3 propeller. The biggest feature is the center of gravity of the battery, which increases overall flight balance. After assembly and debugging by the GEPRC team, the binding can fly.













Elegant BNF/PNP integrated device is very nice. Include GEP-HKX5 frame, GR2306 2450kv motors, GEP5040 3blade propeller, SPAN F4 40A Tower(F405 flight controller, ESC BLHeli_s 40A, VTX 5.8Ghz 0/25/200/600mW), Pagoda2 RHCP antenna, Runcam Swift2 2.1mm camera, The overall coordination is very consistent, suitable for freestyle or racing.













We are offer 3 version PNP(without receiver) and BNF(with Frsky receiver)/(withfutabareceiver)




















Specifications:






-Brand Name: GEPRC






-Model: Elegant






-Wheelbase: 230mm






-Firmware: betaflight_3.2.5_OMNIBUSF4SD






-Input Voltage: support 2-5S Lipo






-Motor:GR2306 2450kv






-Propeller:GEP5040*3 (10 pairs)






-Weight: 348 grams without battery or props






-Receiver: Frsky R-XSR (ONLY BNF INCLUDE)

















Frame: GEPRC GEP-KHX5









-Carbon:Full 3K carbon fiber Twill









-CNC:High precision CNC 7075









-Wheelbase: 230mm









-Thickness of bottom plate: 2mm









-Thickness of side plate: 1.5mm









-Thickness of arms plate:4mm
























Flight Controller: SPAN F4 Tower AIO












-MCU: STM32F405












-MPU: MPU6000












-ESC: 40A * 4 BLHeli_s (Dshot 150/300/600) support 2~5S LiPo












-VTX:5.8GHz (48 Channel) (OFF/25/200/600mW)































You might need the following equipment to fly















-Remote control: You can choose: Frsky X9d or something like that















-Goggle: Such as FatShak V2 or something like that















-Battery: The novice recommends using the 3s 1300-1800mah battery. Professional flying professionals recommend 4s 1300mah-1800mah
Important! Since ESC is installed backwards, to do channel mapping, please enter the following code every time you refresh the firmware:






# resources






resource MOTOR 1 A03






resource MOTOR 2 A02






resource MOTOR 3 B00






resource MOTOR 4 B01






save
























Features:









1- Frame layout is reasonable, center of gravity center, reduce energy waste









2- Use mature and stable GEP-KHX5 frame, strong and fall – resistant, all 3k carbon plate









3- Use SPAN F4 Tower, stable and simple









4- The GEPRC team carefully calibrated the PID to ensure reliability and stability, and the binding flew









5- High efficiency GR2306 2450kv motor, with GEP5040 propeller, achieve perfect output









6- Use the Pagoda2 antenna to determine the image quality









7- Runcam Swift 2 lens for clarity









8- Blhelis 40A ESC ensures power output









9- VTX 5.8g, Power 0/25/200/600mw can select



















Include:









1x Elegant BNF/PNP Quad









10x GEP5040-3 Propeller









3x Battery strap









1x Spare Arms









2x Pagoda2 RHCP MMCX Antenna(1pcs installed)









1x Frsky or futaba R-XSR Receiver(ONLY BNF)
